OBS Shows Black Screen But Audio Works - Fix

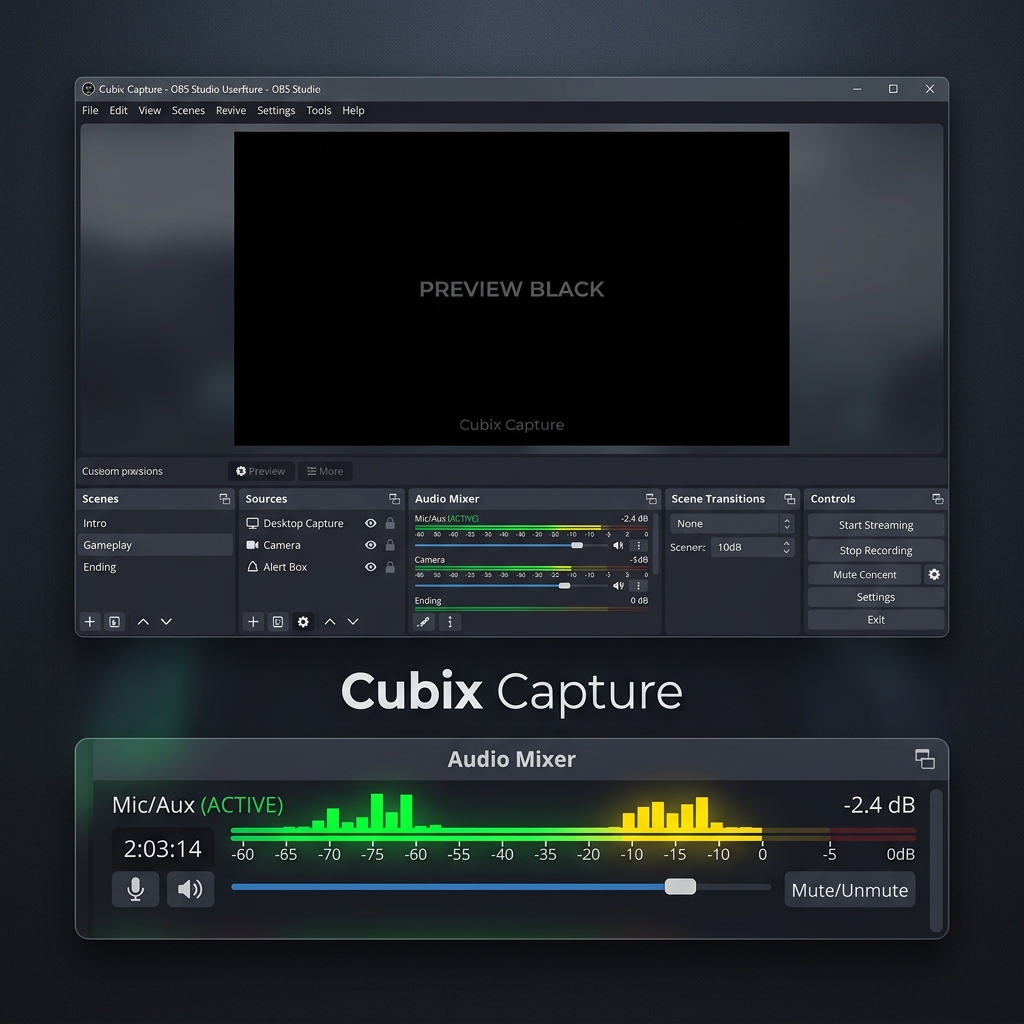

There is a very specific type of frustration that sets in when you click "Start Recording" or "Start Streaming" in OBS Studio, look at your meters, and see everything lighting up perfectly—except the video. Your microphone track is green, your internal system audio is capturing every chime, but your preview panel is a solid, stubborn block of black emptiness.

When OBS captures audio but shows a black screen, it confirms that the software itself is running fine. The bottleneck isn't a broken installation; it's a failed visual handshake. Because OBS hooks directly into your computer's low-level graphics pipelines to capture high-performance video, any slight permission block or hardware mismatch causes the video stream to drop into pitch blackness while the audio stream sails right through.

Whether you are trying to capture a high-end 3D game, a secure web browser, or your full desktop canvas, here is the diagnostic blueprint to restore your visual feed instantly.

Step 1: Run OBS as an Administrator (The Security Bypass)

Modern operating systems treat background screen scraping with extreme suspicion to protect your personal user data. If the application or game you are trying to record is running with higher system privileges than OBS, Windows will actively block OBS from peeking into its visual frame memory while completely ignoring the audio track.

• The Fix: Close OBS Studio entirely. Right-click the OBS Studio shortcut icon on your desktop or Start Menu and select Run as administrator.
• Make it Permanent: If your display instantly reappears, right-click the shortcut, open Properties, head to the Compatibility tab, check the box for Run this program as an administrator, and click Apply.

Step 2: Fix the Multi-GPU Tug-of-War (Laptop Focus)

If you are recording on a laptop or a desktop workstation with dual graphics chips (an integrated Intel/AMD processor chip for basic desktop tasks and a dedicated NVIDIA RTX/AMD card for heavy 3D workloads), your system is likely experiencing a routing conflict.

Windows tries to preserve power by running your basic desktop canvas on the low-power integrated chip, while pushing heavy apps onto your dedicated graphics card. If OBS is assigned to your dedicated graphics card, it will be completely blind to your desktop layer sitting on the low-power chip, resulting in a black box on Display Capture even though your system audio hooks remain perfectly active.

1. Open Windows Graphics Preferences: Open your system graphics hub. Press the Windows Key, type Graphics settings into your search bar, and hit Enter.

2. Locate OBS Studio in the Directory: Select the updated execution file. Scroll down the application directory list. If OBS isn't present, click Browse and target your local installation path (the default Windows location is C:\Program Files\obs-studio\bin\64bit\obs64.exe).

3. Click Options on the OBS Entry: Open the hardware execution profile. Select OBS Studio from the application list and click the Options button to bring up the hardware strategy menu.

4. Re-assign the Performance Target: Match the GPU profile to your capture type.

• To fix Display Capture (Desktop): Select Power Saving (forces OBS onto your integrated graphics chip to mirror the desktop layer).
• To fix Game Capture (3D Gameplay): Select High Performance (forces OBS onto your dedicated card to align with your games). Click Save and restart your PC.

Step 3: Switch Off Browser Hardware Acceleration (DRM Protection)

If your screen recording captures your full desktop, local folders, and mouse movements perfectly, but drops into an empty black box the exact moment you play a video inside a browser tab (like Netflix, YouTube, or Prime Video), you have hit a Digital Rights Management (DRM) wall.

Web browsers use graphics acceleration to cooperate with streaming services, actively blacking out recording applications to prevent unauthorized media piracy while allowing the audio track to feed through normally.

• The Fix: Open your browser's settings menu (Chrome, Edge, or Brave), type Hardware Acceleration into the internal settings search bar, and toggle Use graphics acceleration when available to Off.
• Relaunch your browser and attempt to record the tab again. (Note: Remember to flip this back on when you are finished recording, as running your browser without hardware acceleration forces your main CPU to do all the heavy visual lifting, which can make web scrolling feel noticeably slower over time).

Step 4: Grant Screen Recording Permissions (macOS)

If you are a Mac user experiencing the "audio works, video is black" phenomenon, it is almost never a graphics card conflict. Apple treats full screen recording as a critical user privacy issue. If you haven't explicitly whitelisted the app in your security panel, macOS will output an empty black window to protect your data display while still letting your microphone feed pass through.

1. Click the Apple logo in the top-left menu bar and select System Settings.
2. Navigate to Privacy & Security in the left sidebar, scroll down, and click Screen & System Audio Recording.
3. Find OBS in the application array. If the toggle switch is turned off, click to switch it On.
4. Enter your Mac password or use Touch ID when prompted, then click Quit & Reopen for the new privacy architecture to take effect.

Tired of Troubleshooting? Shift to Zero-Edit Automation

While OBS Studio remains a stellar open-source powerhouse for live broadcasters and advanced streaming engineers who need raw multi-channel audio tracks and manual encoder mapping, constantly diagnosing system privileges, toggling graphics drivers, and fighting black screens can completely ruin your creative momentum.

If your primary goal is simply producing crisp software tutorials, web walkthroughs, or clean product demonstrations without playing IT support technician every week, it is time to upgrade your creator workspace to Cubix Capture.

Instead of acting like a rigid broadcast console that drops your video feed under basic hardware shifts, Cubix Capture uses a completely modernized, automated recording architecture:

• Zero-Configuration App Isolation: It completely eliminates the multi-GPU tug-of-war. You simply select the specific application window or browser tab you want to teach, and Cubix Capture isolates and hooks into that frame perfectly with zero black screen vulnerabilities.
• Algorithmic Focus Zooms: Since over half of your audience watches videos on smartphones, full-desktop captures make user interface text look microscopic. Cubix Capture automatically tracks your cursor targets and smoothly glides the camera inward to magnify dropdown menus, text blocks, and settings panels dynamically while you talk.
• AI Cursor Path Smoothing: It catches naturally jerky micro-movements from your physical trackpad or mouse and translates them into an elegant, fluid sweep that calmly leads your viewer's focus.
• Studio-Grade Canvas Staging: It automatically places your captured windows against gorgeous, dynamic canvas backdrops while setting your facecam into a clean floating geometric circle with hardware-accelerated studio background blurring natively.

If you are setting up an elaborate live stream with complex multi-source scenes, running OBS as an administrator or forcing Power Saving mode in Windows will restore your visual layer. But if you want to protect your schedule, eliminate technical troubleshooting, and output polished, mobile-optimized tutorials the exact millisecond you click stop recording, moving your workspace to a smart platform like Cubix Capture handles the entire production pipeline for you dynamically.
