OBS Microphone Not Working - Fix It in 5 Minutes

You’ve set up your video layout, opened your application window, and started recording your software tutorial—only to look down and notice that your Mic/Aux audio bar in OBS Studio is completely frozen. It isn't moving a single millimeter, or worse, your students are reporting that your voice sounds glitchy, metallic, or only plays out of one ear.

When OBS Studio fails to capture your microphone, it rarely means your physical hardware is broken. Because OBS functions as an advanced digital mixing board rather than a simple screen grabber, it requires strict, explicit handshakes with your operating system's security kernel and audio drivers. If a single permission toggle or clock rate frequency drops out of sync, OBS falls dead silent.

Whether you are using a premium XLR setup or a plug-and-play USB microphone on Windows or macOS, here is your definitive 5-minute diagnostic blueprint to unmute your vocal track instantly.

Minute 1: Grant OS Microphone Access (The Security Check)

Modern operating systems treat your microphone as a high-security privacy hazard. If you have updated your system recently, Windows 11 or macOS may have silently revoked OBS Studio’s permission to scrape audio lines from your hardware.

On Windows 11:

1. Press the Windows Key + I to open your Settings panel.
2. Navigate to Privacy & security > Microphone.
3. Ensure Microphone access is toggled On, and scroll down to verify that Let desktop apps access your microphone is explicitly checked and active for OBS Studio.

On macOS:

1. Open your System Settings and click Privacy & Security in the left sidebar.
2. Click on Microphone in the right-hand panel.
3. Locate OBS in the application index and toggle the switch to On. Relaunch OBS to let the security architecture reset.

Minute 2: Stop Using "Default" Audio Device Mappings

By default, OBS maps its vocal capture tracks to Default, which commands the software to blindly copy whatever device your computer thinks it is using. The moment you plug in a secondary USB device, Bluetooth earbuds, or an external monitor, your operating system can fork its audio lines, causing OBS to lose your microphone signal trail completely.

• The Fix: Go to the bottom-right corner of OBS and click Settings, then switch to the Audio tab.
• Locate the Global Audio Devices block. Change Mic/Auxiliary Audio from Default to the exact name of your physical microphone (e.g., Microphone - Elgato Wave:3 or Scarlett Solo USB). Click Apply.

Minute 3: Re-align System Sample Rates (Fixing Glitchy Audio)

If your microphone track is moving but your voice sounds robotic, heavily distorted, or cuts out every three seconds, you are experiencing a Sample Rate Clock Mismatch. Your computer's internal sound card processes digital voice data at a specific frequency (usually 44.1 kHz or 48 kHz). If OBS is configured to listen at a different speed than your hardware is outputting, the encoding pipeline chokes.

1. Check Your Operating System Sound Panel: Identify your system's core audio clock. On Windows, press Windows Key + R, type mmsys.cpl, and hit Enter. Head to the Recording tab, right-click your active microphone, select Properties, and open the Advanced tab. Look at the default format frequency (e.g., 2-channel, 16-bit, 48000 Hz).

2. Navigate to OBS Audio Preferences: Open your broadcasting audio module. Launch OBS Studio, click on Settings in the bottom-right menu dock, and select the Audio tab from the left sidebar.

3. Align the Sample Rate Values: Synchronize the clock metrics precisely. Locate the Sample Rate dropdown at the very top of the interface. If your Windows hardware panel read 48000 Hz, switch OBS to 48 kHz. If your hardware read 44100 Hz, select 44.1 kHz.

4. Apply Changes and Restart OBS: Force the visual and audio mixers to reset. Click Apply, click OK, and restart OBS Studio completely. Speak into your microphone capsule; in most instances, your audio stream will be completely restored and crystal clear.

Minute 4: Force the Microphone to Downmix to Mono

If you record a test clip, put on headphones, and realize your voice is only playing out of your left or right ear, your microphone is transmitting a stereo block that OBS doesn't know how to split. Most professional USB and XLR microphones record on a single, isolated center audio channel.

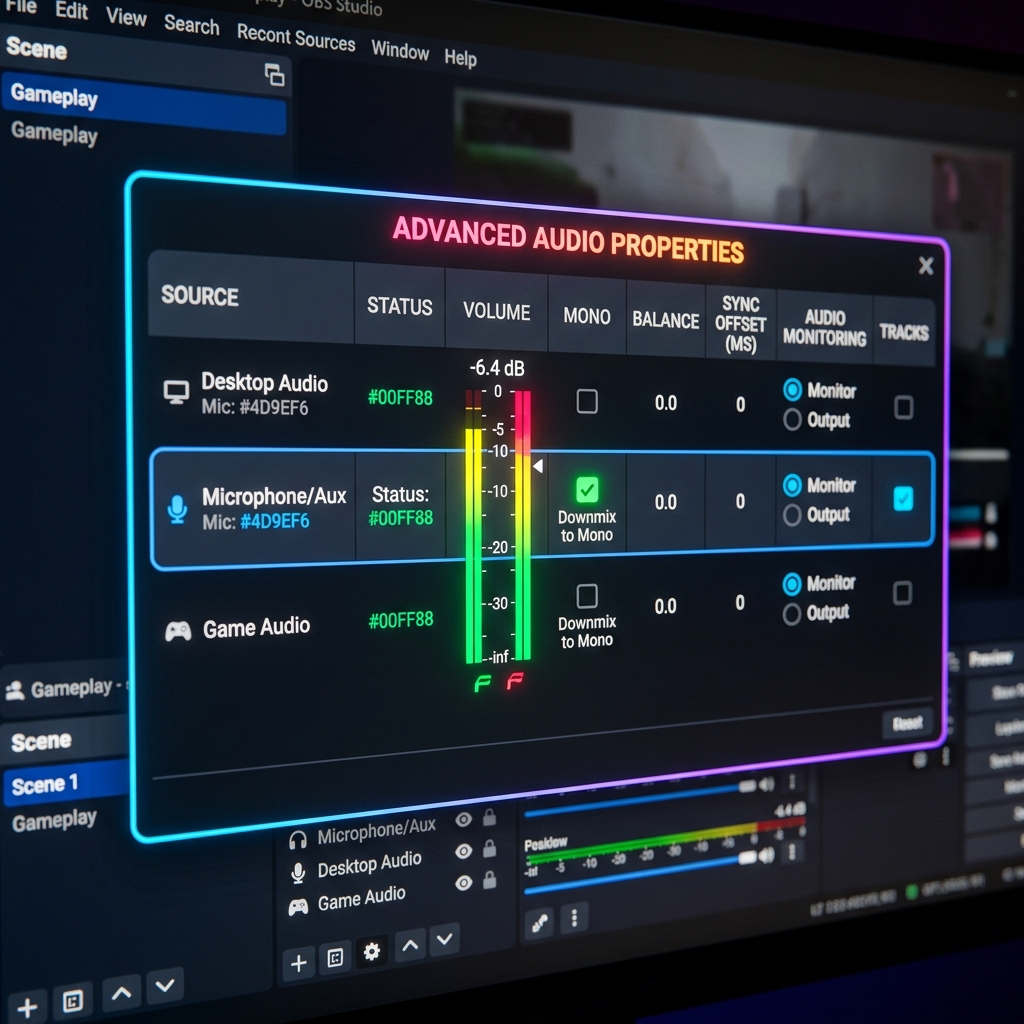

• The Fix: Look at your Audio Mixer deck at the bottom center of OBS. Click the three dots icon next to your Mic/Aux track bar and select Advanced Audio Properties.
• Locate your microphone row and check the box labeled Mono. This tells OBS to automatically mirror your vocal track across both the left and right stereo headphones channels perfectly.

Minute 5: Unmute the Windows System Levels

If OBS is still completely deaf to your inputs, Windows may have turned your physical hardware volume down to zero on a system level.

1. Inside that classic Windows Sound panel (mmsys.cpl) under the Recording tab, right-click your microphone and select Properties.
2. Switch to the Levels tab at the top.
3. Ensure the volume slider is pushed up between 80% and 100%, and look closely at the small speaker icon next to it—if it has a red circle slash over it, click it to Unmute the device.

Tired of Sound Check Anxiety? Switch to Cubix Capture

While OBS Studio is an unrivaled open-source console for live broadcasters who need advanced multi-track hardware separation, dealing with sample rate math, device priority swaps, privacy blocks, and mono channel downmixing can completely derail your creative momentum.

If your primary objective is simply producing crisp software tutorials, web walkthroughs, onboarding modules, or digital course lessons without spending your afternoons acting as an audio support technician, it is time to move your stack to Cubix Capture.

Instead of running like a complex hardware mixing console that drops audio lines under minor device switches, Cubix Capture uses a modernized, zero-configuration capture engine:

• Unified Audio Handshaking: It completely eliminates sample rate and permission math. It automatically locks onto your active microphone hardware and desktop application sound waves simultaneously with zero manual device assignment loops.
• Algorithmic Focal Zooming: Because over half of your audience watches tutorials on smartphones, full-monitor screen recordings make application labels look microscopic. Cubix Capture automatically tracks your cursor paths and smoothly glides the camera inward to magnify dropdown menus, text blocks, and settings panels dynamically while you talk.
• AI Cursor Path Smoothing: It catches naturally frantic or jittery micro-movements from your physical trackpad or mouse and smooths them into an elegant, cinematic glide that anchors student attention.

If you are a streaming engineer building an advanced live multi-camera broadcast stream, syncing your sample rates inside the system sound panel will restore your OBS microphone layer. But if your goal is to save your schedule, avoid technical troubleshooting, and output polished, mobile-optimized tutorials the exact millisecond you click stop recording, moving your creator setup to a smart, automated platform like Cubix Capture handles the entire pipeline for you dynamically.
